Regular price $649.95
Unit price  per

Keep your wheels going & your cash flowing

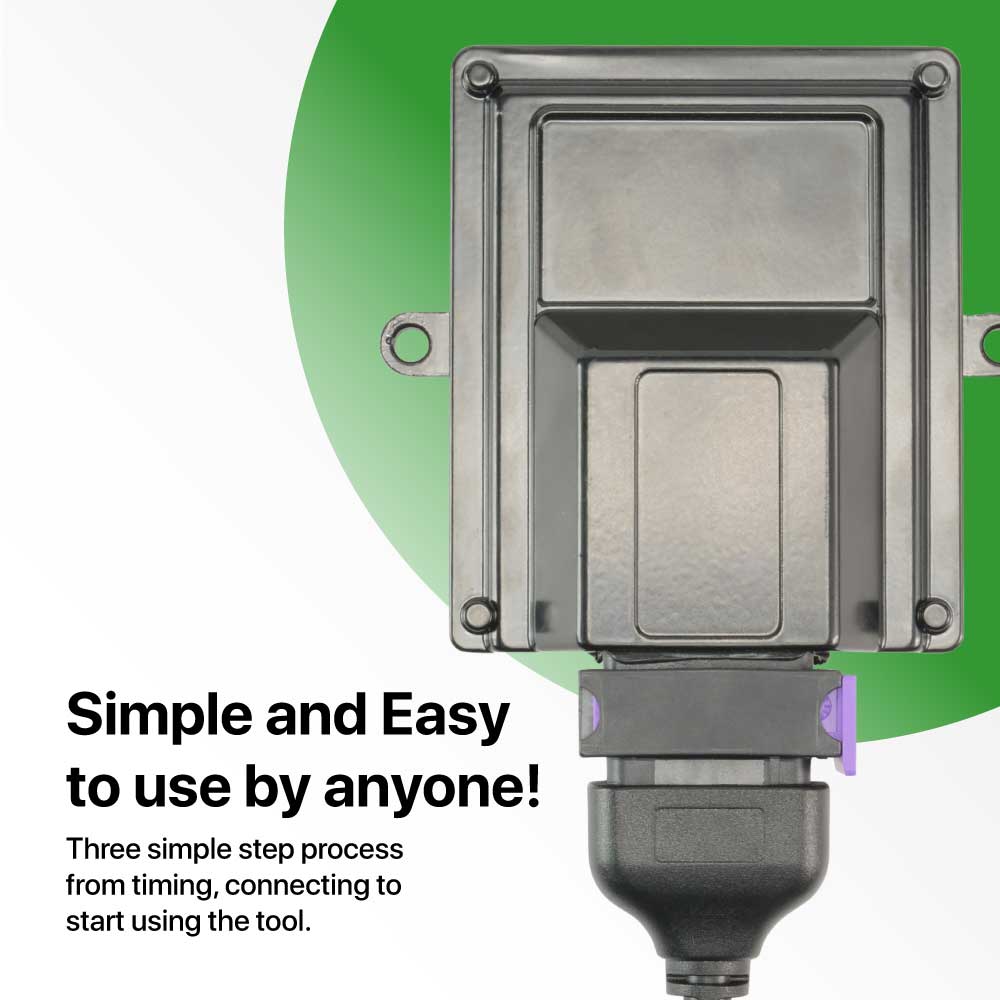

Our plug-and-play tool gives you the power to run advanced diagnostic functions, including a forced DPF regen, in less than 5 minutes.

The Diagnostic Trouble Code + Aftertreatment system (OTR Reset) Tool is an advanced automated diagnostic tool that makes it quick and easy to understand what’s taken your truck off the road.

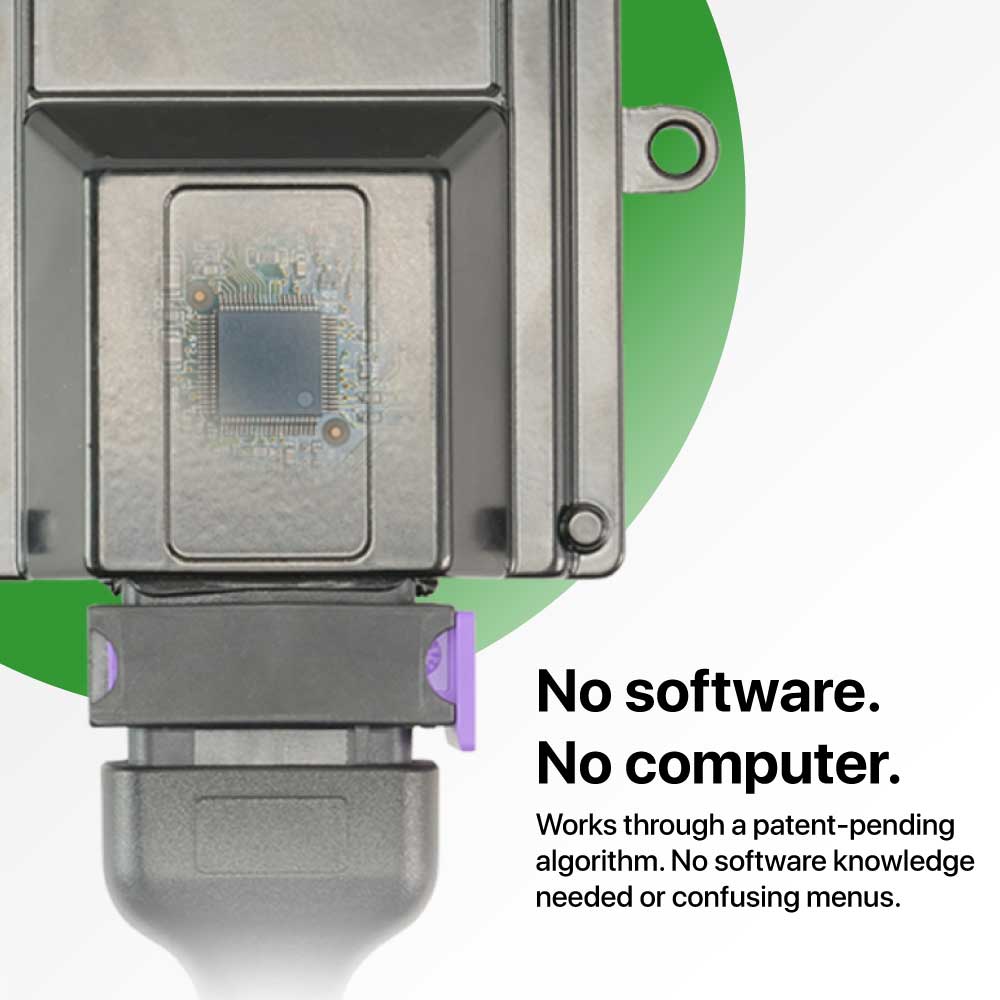

Our patent-pending algorithm means that as soon as you plug in the tool, it immediately starts working. No special diagnostic software, hardware, or button-mashing needed.

You’ll have the power to clear fault codes, reset the aftertreatment system by reprogramming all the parameters to default values, and if necessary, perform a forced DPF regen of the DPF. Anywhere, anytime.

In less than 1 minute, handle DTC issues including...
  • Reset Active Fault Codes. Fault codes that determine that there is an existing issue. Certain active fault codes can be cleared, however, if the problem has not been fixed the fault code will reappear prompting you to seek service.
  • Reset Inactive Fault Codes. Fault codes that indicate that there was a previous issue.
  • Clear first-time ‘Ghost’ Codes. What’s a ghost code? Specific trucks will display fault codes on the dashboard, and most of the time you’ll have a check engine light or a check module message. After this, a screen will appear stating that the error has occurred. Many of the codes that appear on your dashboard fall into the category of “ghost” codes, meaning that the fault code was triggered by certain conditions that are nearly impossible to recreate.
    To get rid of ghost codes, all you have to do is plug the OTR Reset Tool into the diagnostic connection and clear the DTCs once.
    Note that if the fault code comes back a second time, you do need to take the matter seriously.
Plus, overcome these aftertreatment issues in 3 minutes or less
  • Reset EGR Derates / DPF Derates. Accumulators. EGR / DPF derates have stored values in the engine control module and aftertreatment control module (ECM/ACM).  Reset the EGR / DPF derate is necessary to perform after replacement of engine or aftertreatment components.
  • Reset DEF / SCR Derates. DEF / SCR derates have stored values in the engine control module and aftertreatment control module (ECM/ACM).  Reset of the DEF derate is necessary to perform after replacement of aftertreatment components.
  • Reset Aftertreament Learned Data. Measurement of learned data based on various engine components to adjust your injection timing based on characteristics of your engine sensor values.
  • Reset DPF Regeneration Timers. Measurement of time since the last DPF regen occurred. The calculation is based on time, miles driven, and fuel usage.
  • Reset DPF Soot Levels. DPF soot levels have stored values in the engine control module and aftertreatment control module (ECM/ACM).  DPF soot levels determine the status of your soot level in your DPF system. Reset of the DPF soot level is necessary to perform after replacement or cleaning of DOC/DPF filter.
How the OTR Reset Tool Helps with High Soot Notifications & Derates

When a failure occurs, this will prompt you a “high soot” notification on your dash and will derate your vehicle to seek service. You’d need to take the filter off the vehicle and send it to an approved DPF cleaning shop so they can assess how badly it’s clogged. If the filter is a good candidate for cleaning, then you’d perform that service and reinstall the filter on your vehicle.

This is where the reset tool comes in handy — because your filter is clean, but your engine controllers don’t know it yet! The OTR Reset Tool resets the system so your engine knows it’s operating with a cleaned filter.

What’s a forced DPF regen, and when should you perform it?

A forced DPF regen is performed when a diagnostic scan tool, such as the OTR Reset Tool, starts the regen process. The DPF soot load could be too high for a passive or active regen to occur, meaning you’ll need to perform a forced DPF regen.

  • When to start a forced DPF regen
    • When the soot level is too high for a passive or active regen to occur
    • When maintenance items are replaced on the aftertreatment system in order for you to clear certain fault code
    • To keep your DPF filters clean, which can save you fuel mileage and prevent breakdowns

More than
5,000+ units
sold.

Number of years
in development:
6

★★★★★
4.9 stars
300+ Google Reviews

"Great tool. Glad I spent the money, it does exactly what they said it would. Already paid for itself in a couple of weeks just with savings of not having to pay someone to do a forced regen."
Review by Chelsey R. on 19 Jul 2019

Who’s the OTR Reset Tool for?

The OTR Reset Tool is for fleet owners, owner-operators and drivers who are tired of paying every month for check engine lights, regens, and resets.

With this tool, you’ll instantly be able to:

  • Cut down on the days your vehicles spend in repair shops
  • Get a deeper insight into your engine’s performance and each rig’s unique quirks
  • Drive confidently at night or out of state with less worrying about getting stuck

If you’ve ever lost a day (or a load) due to breakdowns, engine faults, soot level, or mysterious, un-re-creatable ghost codes, you need this tool.

Take it from our happy customers:

Review 1
Review 2
Review 3
NOTE: OTR Diagnostics will not work with the OTR Reset Tool.

Compare OTR Reset Tool vs OTR Diagnostics - here

J1587/1708 Protocol
  • Transmission ECU (MID130) – Eaton Fuller / Meritor Wabco
  • ABS / Brake ECU (ABS136) - Eaton Fuller / Meritor Wabco
  • Standard SAE J1708 Fault Codes
J1939 Protocol
  • PMCI - Engine ECM
  • EAS3 - Aftertreatment ECU
  • CECU - Cab Controller
  • ABS / Brake Module
  • Standard J1939 Fault Codes

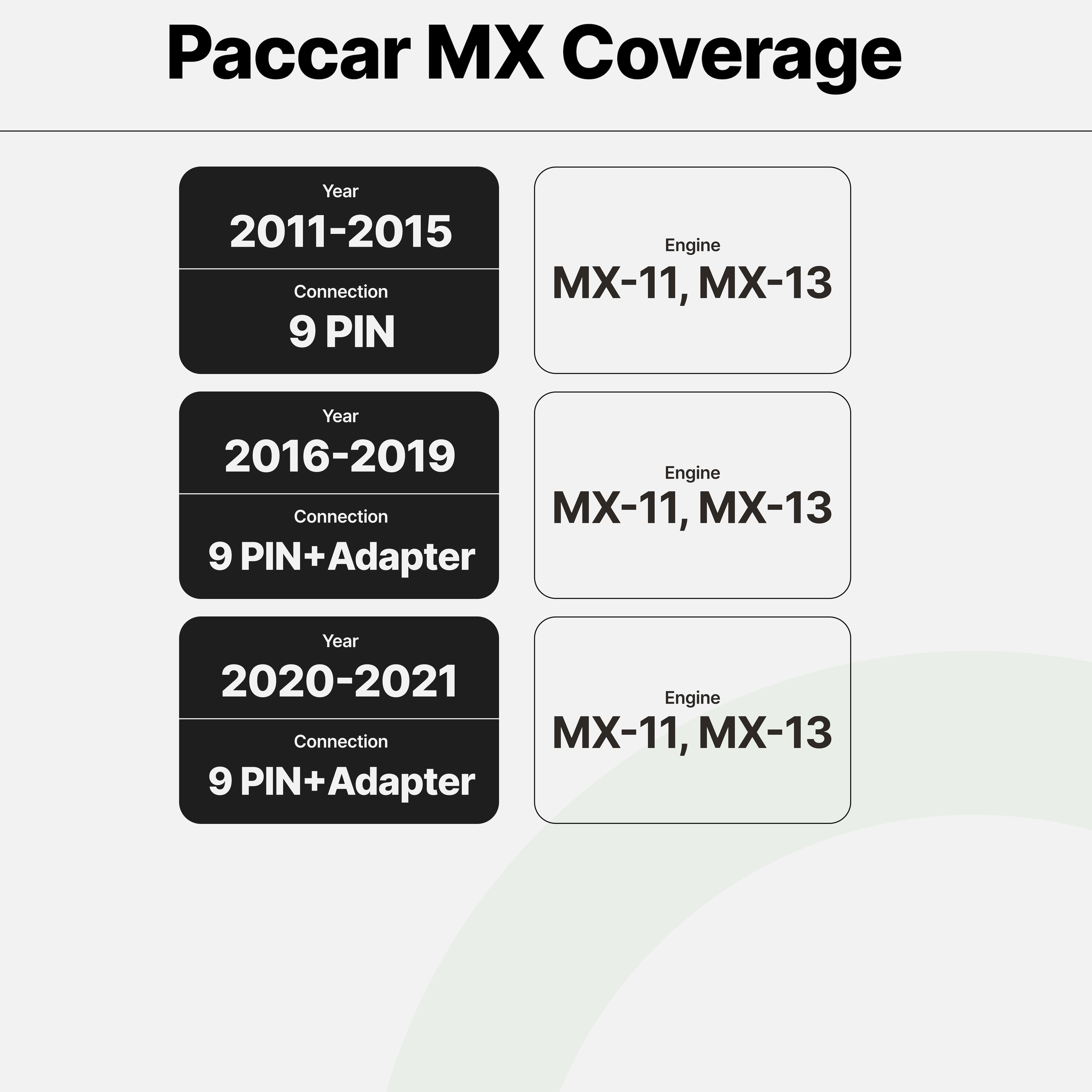

Engines Covered (9pin)

On all Paccar engines, it is necessary to locate the color of your diagnostic plug on the truck underneath the dash.

Black Paccar Diagnostic PlugGreen Paccar Diagnostic Plug

Engine Emission
Paccar MX11 EPA10
Paccar MX11 EPA13
Paccar MX11  EPA17
Paccar MX13  EPA10
Paccar MX13  EPA13
Paccar MX13  EPA17
Chassis Coverage
  • Peterbilt Trucks – All Models
  • Kenworth Trucks – All Models

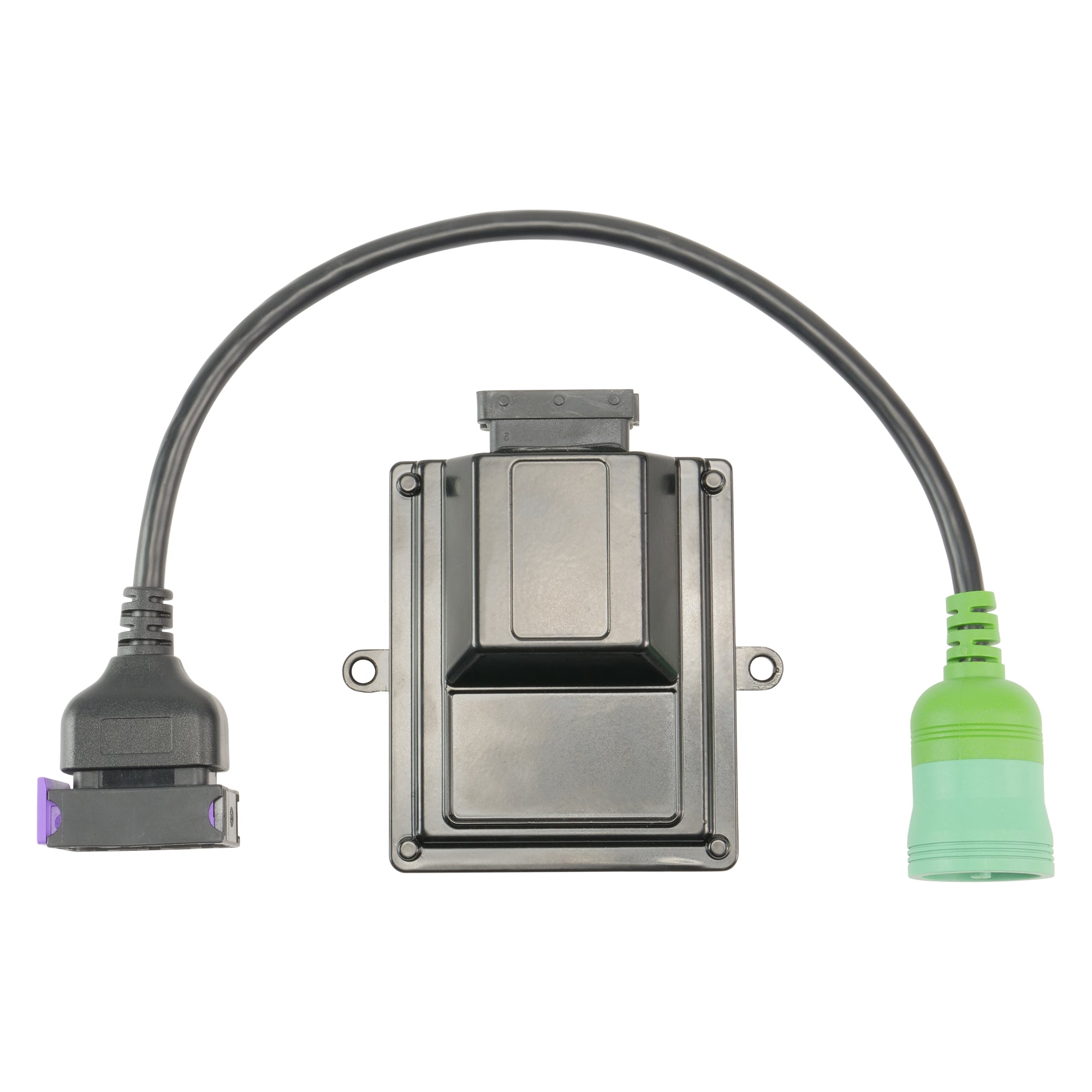

What comes with the tool?
  • OTR Reset Tool

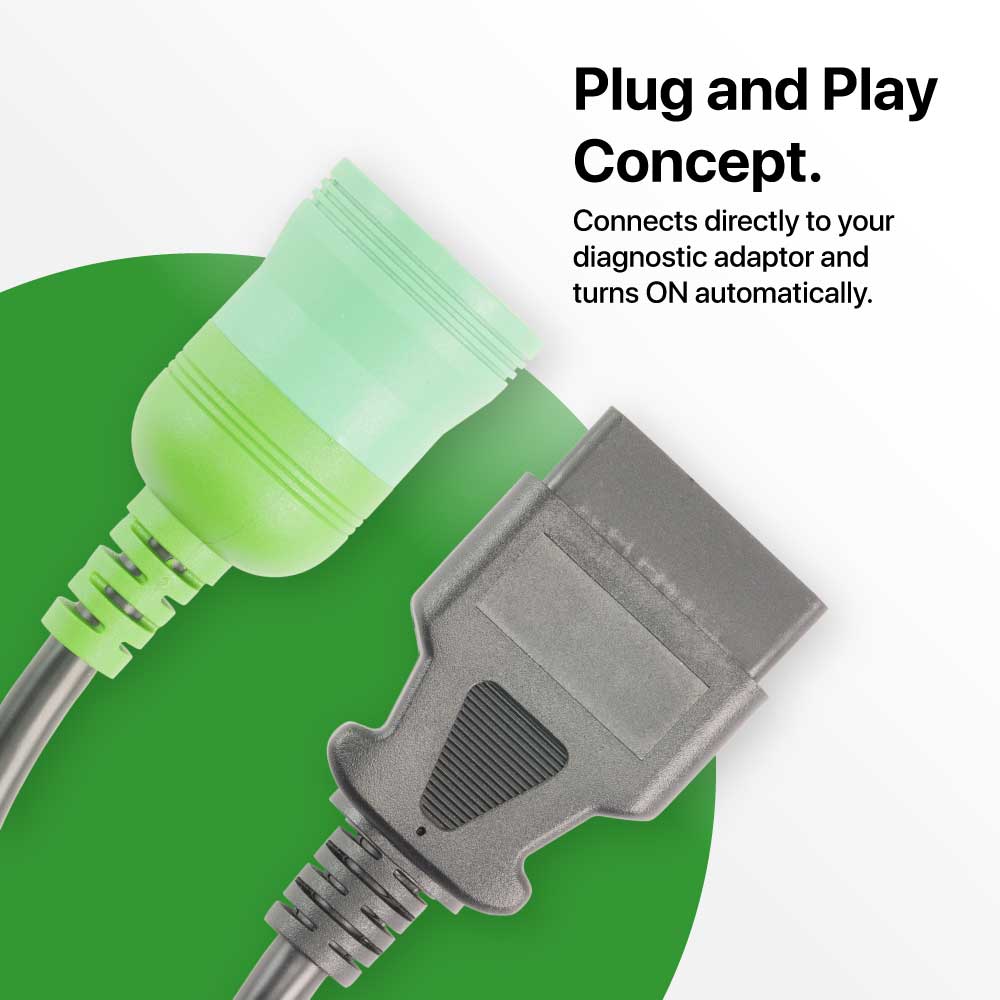

  • Diagnostic Harness
  • Instructions Manual
  • 1-Year Warranty
How to use - 2013 Peterbilt 386 Paccar MX13 EPA10
How to use - 2014 Kenworth Paccar MX13 EPA13
HOW TO - CLEAR FAULTS/CLEAR AFTERTREATMENT

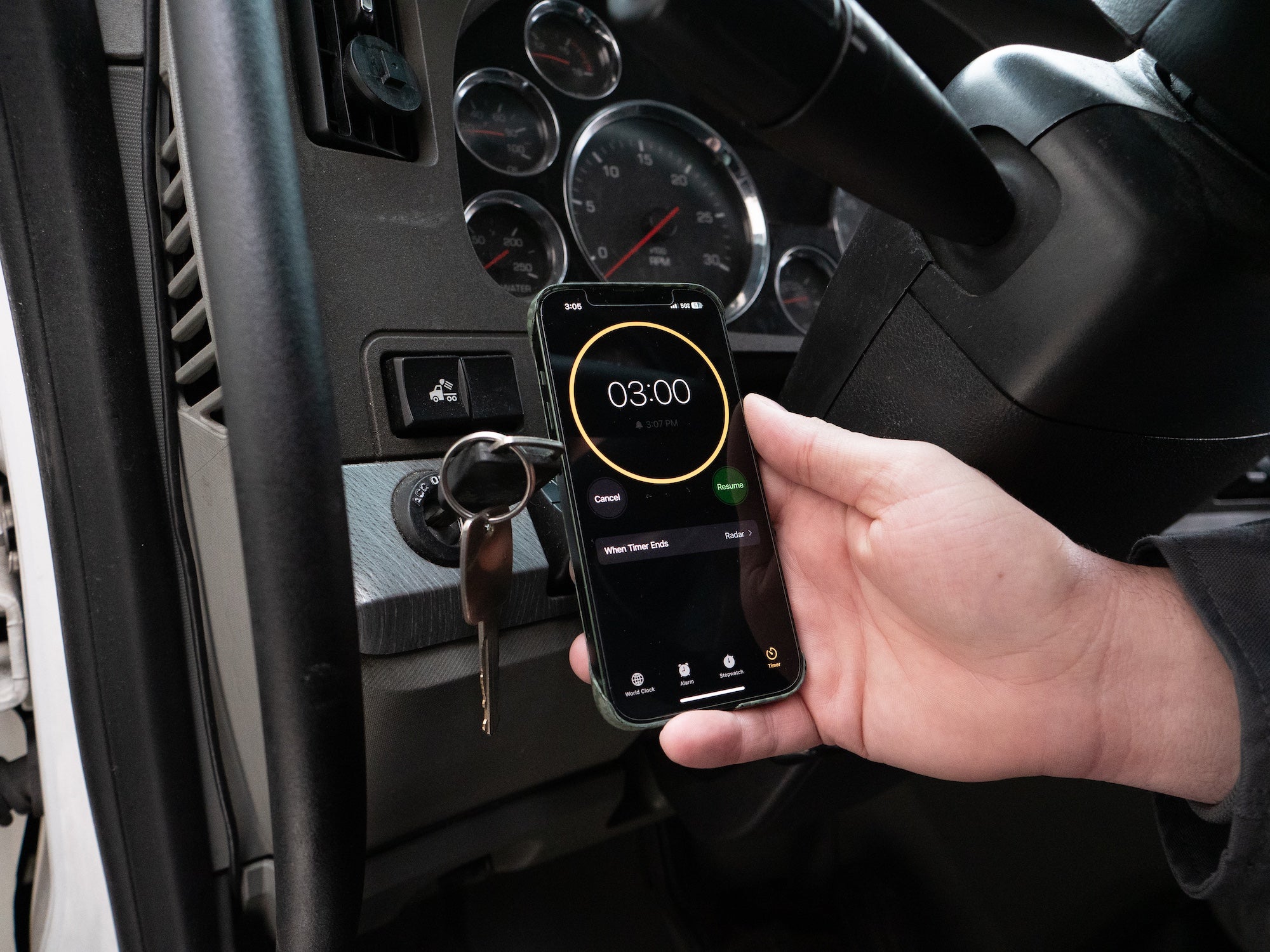

Start a timer to make sure you perform the service correctly

  1. Turn ignition OFF for ONE(1) minute.
  2. Turn ignition to the accessory position (Key On/Engine Off) for ONE(1) minute
  3. Connect OTR reset tool to the 9-Pin connection under the dash
  4. Reset Codes - Leave plugged for 1 minute
  5. Reset AFT system - Leave plugged for 3 minutes

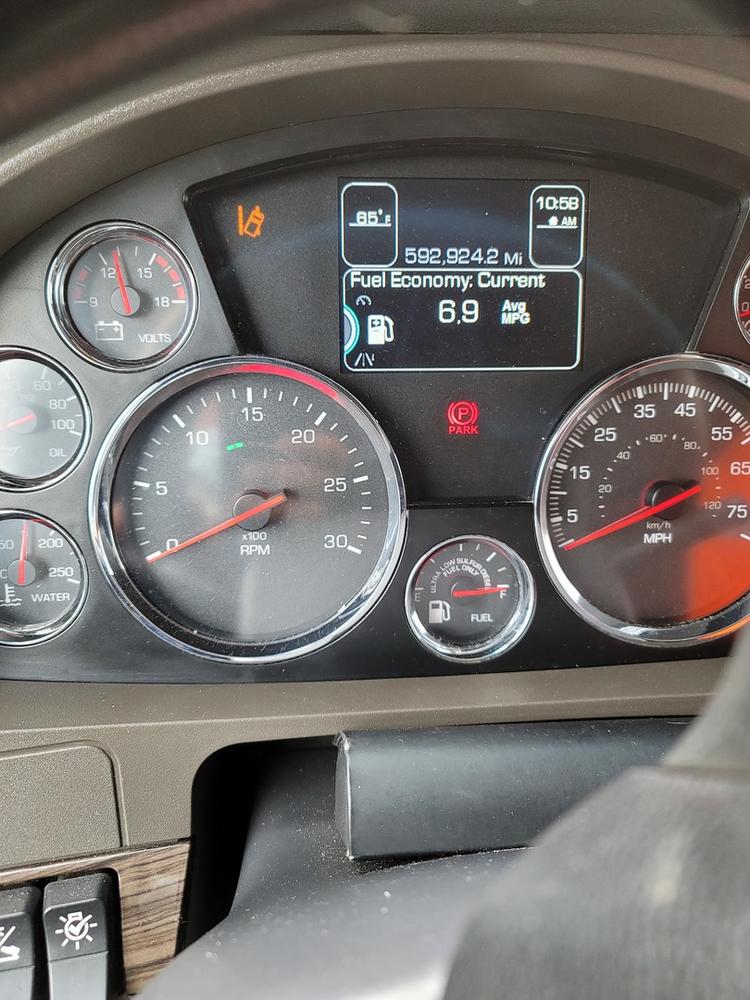

  6. Look on the dashboard, CEL will disappear and ABS should start clicking
  7. Check for faults, if faults are still present repeat steps 1-4 if no faults are present continue to step 7.
    *NOTE: if fault codes remain "Active" then it is required for the truck to be taken to a service shop for further diagnosis.
  8. Disconnect the OTR reset tool
HOW TO - START FORCED DPF REGEN

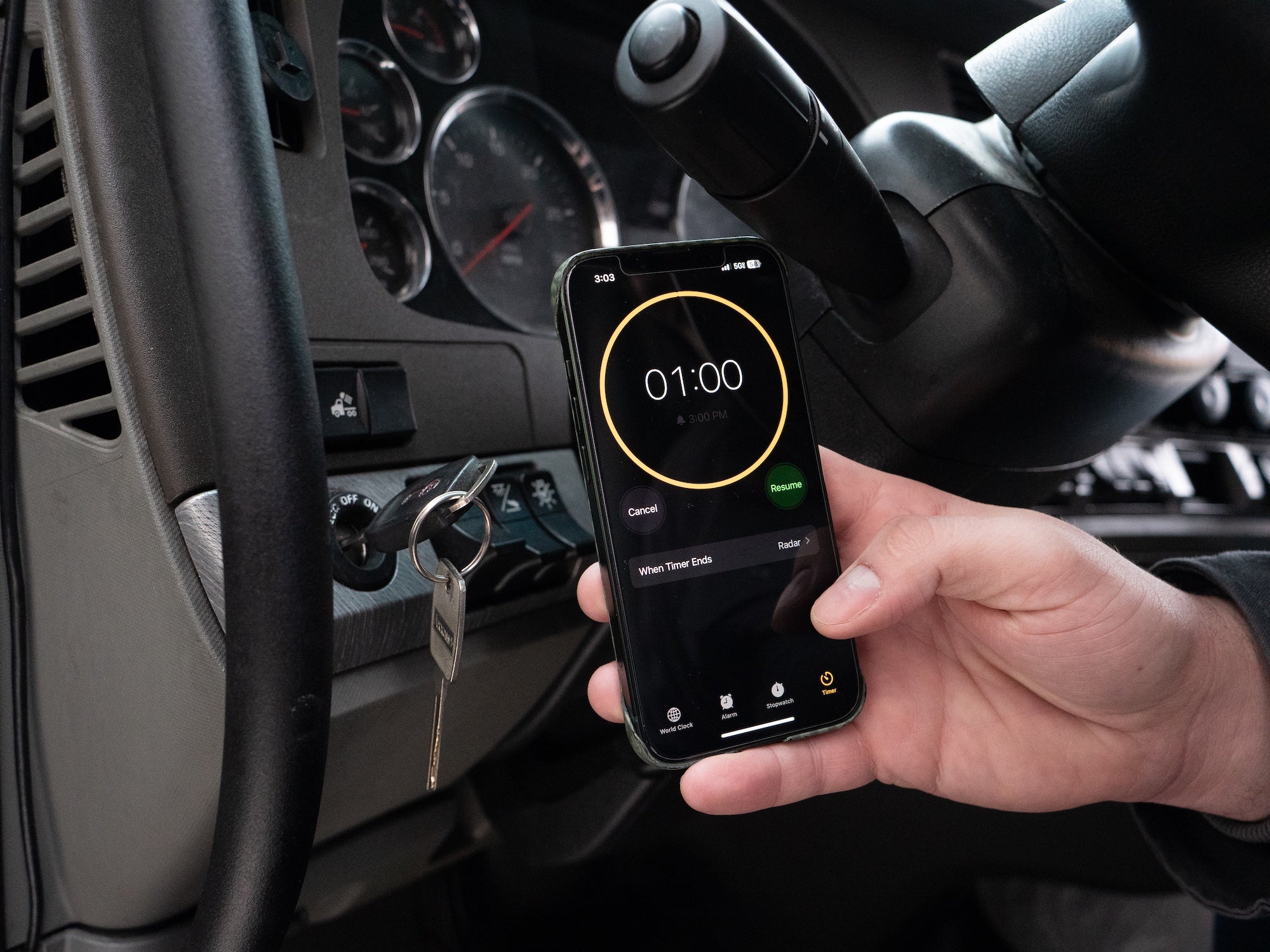

Start a timer to make sure you perform the service correctly

  1. Turn ignition OFF for ONE(1) minute.
  2. Turn the engine on and leave the engine running during this process.
  3. Make sure the engine is fully warmed up (180+)
  4. Connect OTR reset tool to the 9-Pin connection under the dash.
  5. ** EPA10 (2011-2013 Trucks)** Wait 10 to 13 seconds - Then Hold Down Regen Button for 5 Seconds. (If regen doesn't start disconnect tool and try again from step 4.

  6. Start Forced Regen - Regen will start after 30 seconds.

  7. The truck will increase RPM to higher idle 1000+ RPM to increase temps to burn the soot out of the DPF filter.
  8. The RPM will stay high until the truck finishes regen. ~20-60min
    *NOTE: Do not touch the accelerator, brake pedal, or clutch during this process or it will cancel regen.
  9. If regen does not start then you may not have met all conditions in order for the truck to start regen. Check for fault codes and try again.
  10. Reset tool will remain plugged in until the regen finishes. After the regen has finished, disconnect the OTR reset tool.

"This device has truly been worth the money! I’m averaging one fault every other month, and this device clears the fault every time. Also, I’m regenning whenever I like"
Review by Timothy M. on 23 Jun 2019

30dayguarantee
30-Day Guarantee

We get it, you don’t know us very well yet. That’s why all OTR tools come with a 30-day, no-hassle money-back guarantee. If this tool doesn’t fit your needs for any reason, just let us know within 30 days of receiving your order, and we’ll refund 100% of your purchase price. We’ve got your back.

5yearwarranty
5-Year Warranty

All our products come with a free limited 5-year warranty. Before any product leaves OTR Performance it is tested and retested to ensure it works as intended the first time. The 5-year warranty also includes one free exchange should there be an update for your particular Reset Tool.

usasupport
USA Support

Located in Detroit MI, (EST). A truly committed team of trained experts that are there to assist with any customer service, technical support or general questions you may have. No bots. No bouncing. Real help from real people, when you need us! Contact us via phone, chat, or email anytime.

Disclaimer:
  1. This product will not bypass the operation of any emission control component. This tool is used solely to reset the modules after replacing aftertreatment components or initiating a forced regeneration.
  2. You can use your display to find out what the fault codes mean, however, some heavy-duty trucks will not allow you to view your fault codes. In such a case you will need to plug into a diagnostic software to read the DTC.
